5 Gallon Water Filling Machine
Discover Newpeak’s 5 Gallon Water Filling Machine – fully automatic washing, filling, and capping line with high efficiency, low cost, and reliable quality.

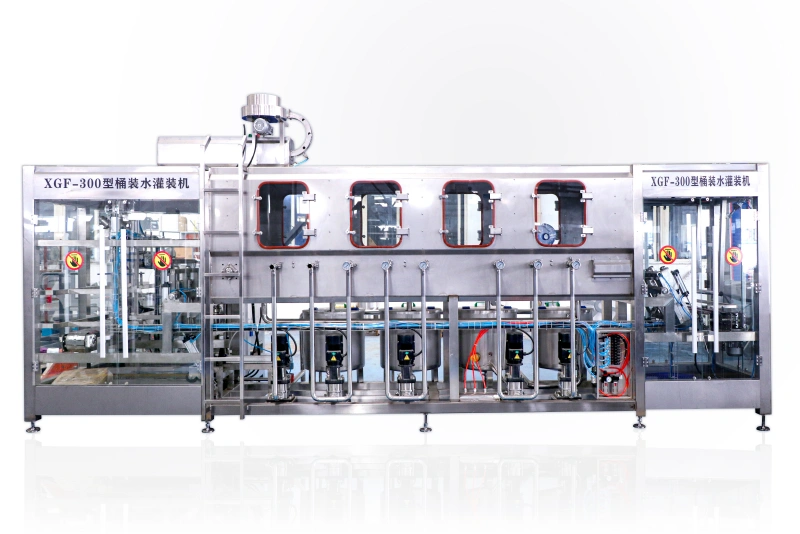

Automatic 5 Gallon Bottle Water Filling Machine – Newpeak
Newpeak’s Automatic 5 Gallon Bottle Water Filling Machine is the ideal solution for producing high-quality bottled water at scale. Designed for 1–5 gallon bottles, this fully automatic water filling line integrates barrel washing, sterilizing, filling, capping, and counting into one compact system — reducing labor costs and maximizing efficiency.

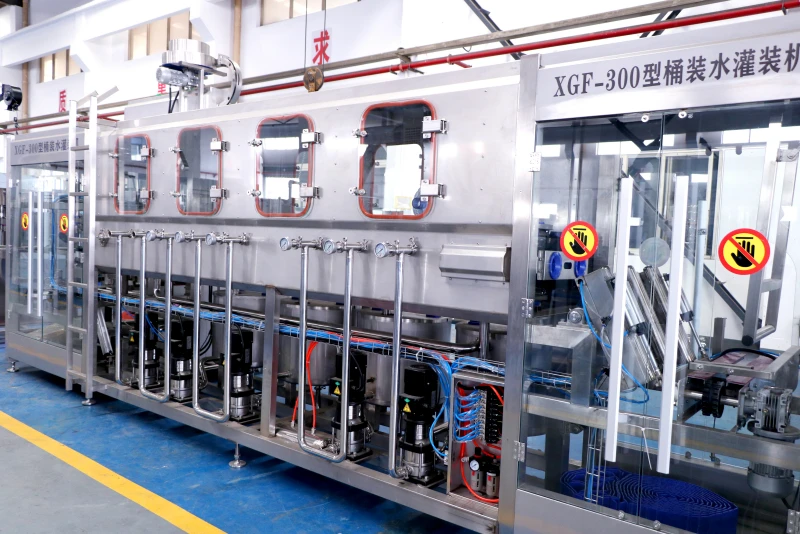

Our QGF Series 5-Gallon Water Production Line is widely used for mineral water, purified water, and distilled water bottling, ensuring sanitary and consistent results for commercial water plants, beverage factories, and turnkey water bottling projects.
Key Features & Advantages
Wide Bottle Compatibility
Suitable for 1–5 gallon bottles made of PVC, PE, or PET, supporting different shapes and sizes.
Fully Automatic Operation
Integrates washing, sterilizing, filling, capping, and product discharge with PLC control for precise filling time.
Hygienic Design
Equipped with stainless-steel rinse nozzles, pressure filling valves, and automatic cap sterilization system.
Durable & Reliable
Built with high-grade SUS304 stainless steel frame for long service life and easy maintenance.
Cost-Effective & High Capacity
Available in multiple models (QGF-100, QGF-300, QGF-450, QGF-600, QGF-1200) with production capacities from 100 to 1200 barrels per hour .
Energy-Efficient & Safe
Uses multi-washing liquid spray and circulating disinfectant, reducing water and chemical consumption.
Technical Specifications (QGF Series)
| Model | Filling Heads | Barrel Volume (L) | Capacity (BPH) | Air Consumption (m³/min) | Motor Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| QGF-100 | 1 | 18.9 | 100 | 0.37 | 1.38 | 680 | 3700×1300×1600 |
| QGF-300 | 2 | 18.9 | 300 | 0.60 | 3.80 | 1500 | 4060×1860×1600 |
| QGF-450 | 3 | 18.9 | 450 | 0.80 | 5.60 | 2100 | 5000×1500×2200 |
| QGF-600 | 4 | 18.9 | 600 | 1.00 | 7.50 | 3000 | 5400×2600×2200 |
| QGF-900 | 5 | 18.9 | 900 | 1.50 | 9.75 | 3500 | 8500×6000×1800 |
Why Choose Newpeak 5-Gallon Filling Machines?
Newpeak focuses on turnkey solutions for water bottling plants, offering competitive pricing, high efficiency, and low maintenance costs.
Our filling machines combine mechanical, electrical, and pneumatic technologies for smooth operation and high productivity. Whether you are setting up a new bottled water factory or upgrading your current 5-gallon bottling line, Newpeak provides customized, scalable solutions to meet your production demands.
Secure Fit
- Designed to snugly fit standard 3-gallon and 5-gallon jugs
- Leak-Proof Design
- Easy Installation and removal
High Quality
- Caps are digitally inspected to ensure the highest quality
- Tamper-evident option provides extra security
- Puncture or plug style available
Economical Design
- Wash, fill & cap 3 and 5 gallon bottles
- Wash and sanitize solutions are recirculated for maximum efficiency
- Internal heating elements
- Precise temperature and timing controls
Versatile & Compact
- Optional small bottle system adaption
- Adjustable filling table height
- Pneumatically driven capper
- Stainless steel construction
Application
- Bottled Water Factories
- Mineral Water & Purified Water Plants
- Distilled Water Production Lines
- Commercial Water Bottling Projects
Increases Efficiency
- Eliminates manual lifting of 3 & 5 gallon bottles
- Labor-saving for operators
- Engineered with a proprietary alignment system
- Optional remote start
Compatible Design
- Programmable with up to 3 different rack styles
- Easily integrates in current production line
- Set up with conveyors to easily move bottles
- Automatic rack loading system option available
