Carbonated Drinks Filling Machine

Newpeak carbonated drinks filling machines ensure precise, efficient, and hygienic bottling for soda, sparkling water, and soft drinks. Reliable solutions for all beverage producers.

Carbonated Soft Drink Filling Machine

Newpeak is a leading Carbonated Soft Drink Filling Machine supplier, providing high-quality soda bottling machines and carbonated beverage filling machines for beverage producers worldwide. Our machines are designed to meet production requirements ranging from 2,000 to 36,000 bottles per hour, ensuring precision, hygiene, and efficiency for carbonated drinks, soda, sparkling water, and other fizzy beverages.

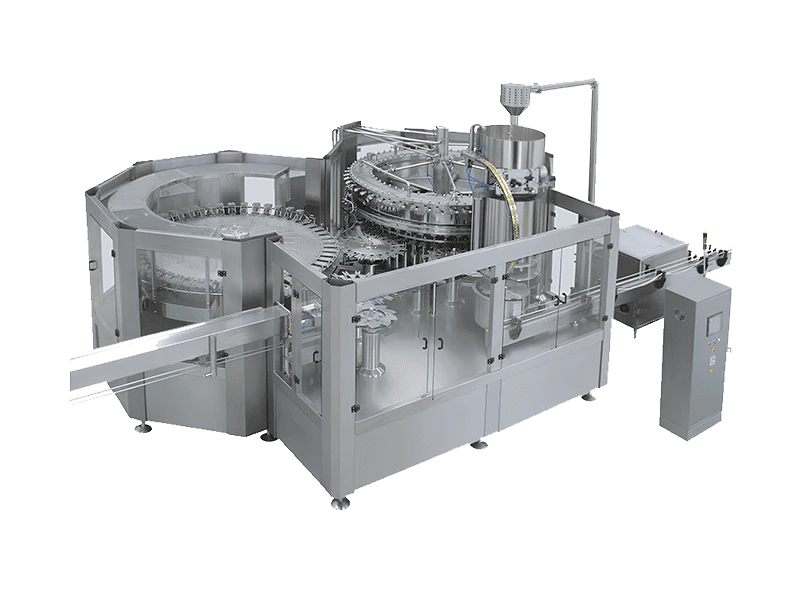

Our carbonated filling machines feature an integrated 3-in-1 design, combining bottle rinsing, filling, and capping in one body, suitable for PET and plastic bottles of various shapes and sizes. The adjustable handle allows easy switching between bottle types, providing flexibility and convenience for your production line.

Key Features of Newpeak Carbonated Drink Filling Machines

Fully automatic soda filling machine with high-speed operation.
Integrated carbonated drink filling machine functions: washing, filling, and capping in one unit.
Flat-type bottle conveyor and glass bottle screw system for easy bottle model change.

Suitable for carbonated beverage filling machine operations in PET, rPET, and plastic bottles.
Equipped with mechanical, electrical, and pneumatic integration for synchronized control.
Servo system enables precise filling, reducing CO2 loss and waste production.

- Handles both carbonated and non-carbonated liquids efficiently.
- Multi-functional combi block machine for juice, water, and soda production with capacities:
0.5L—1L: 12,000–50,000 bph
2L–5L: 4,000–8,000 bph

Key Features of Newpeak Carbonated Drink Filling Machines

Two main types of carbonated filling machines:

Plunger-type CSD filling machine – Cost-effective, ideal for thinner liquids and standard soda production.

Pump-type CSD filling machine – High-speed, high-pressure filling for thicker liquids like energy drinks or specialty carbonated beverages.

Cost-Effective & High Capacity

A Carbonated Soft Drink Filling Machine mixes carbon dioxide with water to produce carbonated beverages. The liquid is then dispensed into bottles or cans using hydraulic or pump mechanisms. The arm rotates through bottles of different sizes to fill each container accurately, preserving carbonation and ensuring consistent quality.

Technical Specifications (QGF Series)

Model	DCGF14-12-4	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Rinsing Heads	14	18	24	32	40
Filling Heads	12	18	24	32	40
Capping Heads	4	6	8	10	12
Capacity (BPH)	3,500	5,000	7,000	10,000	18,000
Bottle Size	Height:180–310mm Diameter:50–90mm	Height:180–310mm Diameter:50–90mm	Height:180–310mm Diameter:50–90mm	Height:180–310mm Diameter:50–90mm	Height:180–310mm Diameter:50–90mm
CO₂ Consumption	18g/100L	18g/100L	18g/100L	18g/100L	18g/100L
Hopper Motor (kW)	0.18	0.37	0.37	0.37	0.75
Blowing (m³/h)	0.3	0.3	0.6	0.6	0.6
Main Motor (kW)	2.2	3.0	4.0	5.0	6.0
Dimension (mm)	2000×1740×2750	2360×1880×2750	2760×2280×2750	4050×2385×2850	4030×3100×2850
Weight (kg)	2,500	3,500	5,000	7,000	9,500

Servo-Controlled Carbonated Beverage Filling Machine

Fast, Accurate & Energy-Efficient for Soda, Sparkling Water, and Soft Drinks

Time-saving: Speeds up production compared to manual filling.
Accurate filling: Ensures each bottle receives the proper CO2 level.
Less product waste: Reduces overfilling and underfilling, optimizing CO2 usage.
Versatility: Handles soda, sparkling water, soft drinks, and other fizzy beverages.
Energy-efficient and cost-effective: Servo-controlled carbonated beverage filling machine reduces operational costs.

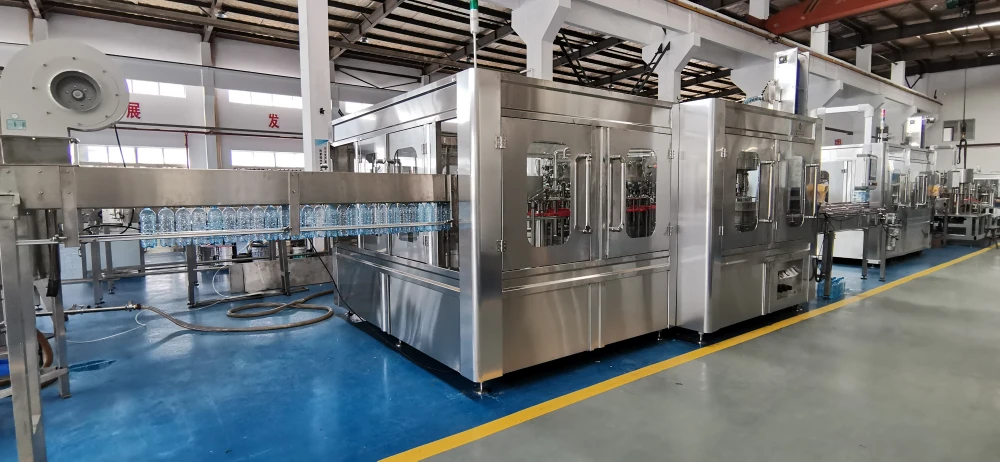

Complete Carbonated Drink Production Solutions

Newpeak offers a full turnkey solution for carbonated drink filling machine production lines, including:

Water treatment system
Automatic PET blowing machine
Washing, filling, and capping machine (soda bottling machine)
High-speed beverage mixing machine
Code sprayer & bottle warmer
Flat conveyor system
Automatic labeling and film wrapping machines
Automatic palletizer system

Newpeak Carbonated Soft Drink Filling Machines

Reliable and hygienic carbonated beverage filling machines built for high-speed production.
Customizable for PET, rPET, and plastic bottles.
Fully automatic and easy to operate for small, medium, and large beverage lines.
Ideal for producing soda, sparkling water, soft drinks, energy drinks, and flavored carbonated beverages.
Advanced servo and PLC control ensures consistent carbonation and precise filling every time.
