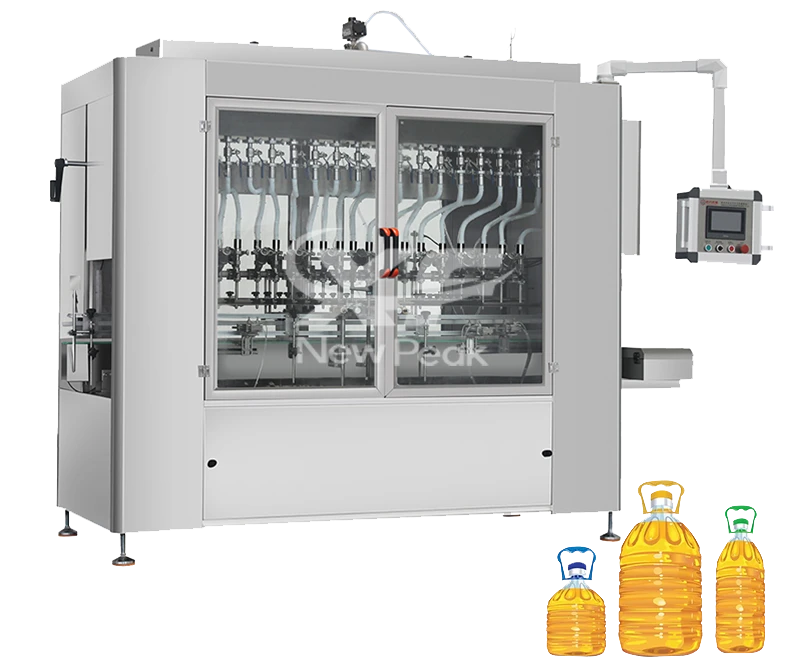

Oil Filling Machine
Boost your production with Newpeak oil filling machines. Fully automatic, customizable, and ideal for bottling edible oil, vegetable oil, and other liquid oils efficiently.
Oil Filling Machine Solutions
Newpeak provides high-quality oil filling machines designed for a wide range of oils, including edible oil, cooking oil, olive oil, and specialty oils.
Our oil filling machine manufacturer expertise ensures precision, hygiene, and efficiency for production lines of any scale, from small bottles to large drums.
Whether you are looking for an oil filling machine automatic for high-speed production or an oil filling machine manual for smaller operations, we have tailored solutions to meet your needs.
Complete Oil Filling System
Our oil bottle filling machines can handle liquids of varying viscosity. Options include:
Overflow fillers
Gravity fillers
Pump fillers
Piston fillers
Net weigh fillers
We also provide complete liquid packaging solutions including:
Capping machines to prevent leakage and contamination
Labelers for paper, Mylar, or clear labels
Fixed or portable conveyors for efficient product transfer
With a complete oil filling machine line, you can achieve long-term operational efficiency and higher productivity.
Customizable Production Lines
Newpeak offers flexible customization options for oil filling machines, including:
Inline oil filling machines for small-scale operations
Rotary oil filling machines for high-volume production
Tailored layouts based on your space, throughput, and bottle sizes
Our engineers design full olive oil bottling machines and edible oil production lines to maximize efficiency, minimize waste, and ensure precise weight-based filling.
Technical Specifications (QGF Series)
Technical parameter : Oil Filling Machine Line | ||||||
Model | OGF24-8 | OGF32-8 | OGF40-10 | OGF50-12 | OGF60-15 | OGF72-20 |
Capacity(for 1000ml) | 6000 | 8000 | 12000 | 15000 | 20000 | 24000 |
Suitable bottle shapes | Circular or square | |||||
Bottle diameter(mm) | Customized | |||||
Bottle height (mm) | Customized | |||||
Filling type | Weigh filling type / Piston Filling type / Flow meter filling type | |||||
Function | Filling capping | |||||
Application | Oil / Sauce / Wine | |||||
Total power (KW) | 4.4kw | 5.4kw | 6.4kw | 7.2kw | 8.2kw | 9.8kw |
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
Weight(kg) | 3500kg | 5200kg | 7000kg | 9500kg | 10500kg | 12000kg |
Key Features of Our Oil Filling Machines
Three-in-One Functionality: Rinsing, filling, and capping in a single unit
Precision Filling: Accuracy within ±1% to prevent overfilling or underfilling
High-Quality Materials: SUS304 stainless steel frame; optional SUS316L for product-contact parts
Touchscreen & PLC Control: Intelligent operation with configurable parameters for speed, volume, and bottle detection
Hygienic & Safe: Quick couplings, stainless steel chains, and GMP-compliant materials ensure easy cleaning and safety
Versatile Integration: Compatible with bottle blowing machines, labeling equipment, and cartoning machines
Technical Advantages
| Feature | Description |
|---|
| Container Range | Small vials to large drums, 500ml–5000L |
| Liquid Types | Edible oil, vegetable oil, olive oil, cooking oil |
| Operation Modes | Automatic, manual |
| Filling Method | Piston, pump, overflow, gravity, net weigh |
| Accuracy | ±1% |
| Material | SUS304, optional SUS316L for product-contact parts |
| Control | PLC with touchscreen, intelligent bottle detection |
| Integration | Can connect with conveyors, labelers, cartoning, and more |
Benefits of Using Newpeak Oil Filling Machines
High Efficiency: Fast and continuous operation with minimal downtime
Flexibility: Supports multiple oil types and container sizes
Low Maintenance: Durable stainless steel components and easy-to-clean design
Precision: Reduces product waste and ensures accurate filling
Scalable: From small businesses to industrial-scale olive oil bottling machines

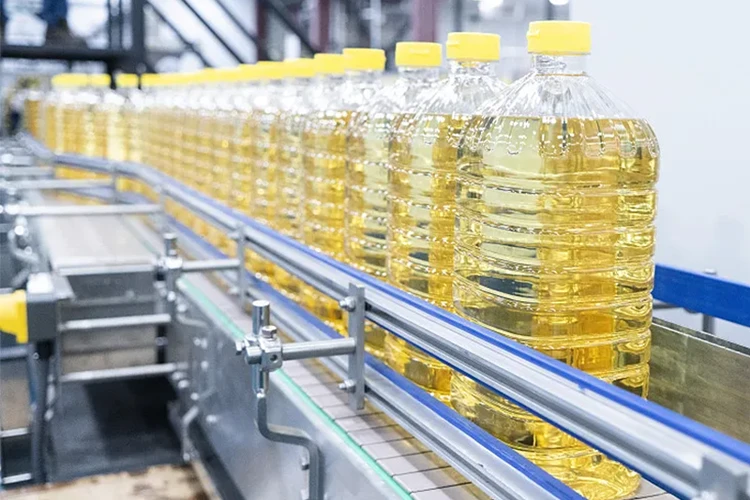

Full Oil Production Line
Newpeak can design and install a complete oil filling line, including:
Oil filling machines automatic and manual
Labeling systems
Capping and sealing machines
Conveyors for smooth transfer
Full turn-key solutions for edible oils, cooking oils, and specialty oils
With our oil filling machine for sale, you can increase production efficiency, maintain hygiene standards, and optimize your supply chain for better profitability.
