Water Treatment System
Reliable industrial water treatment system for pure water, mineral water, and beverage plants. Efficient, low-maintenance, cost-saving solution.
Advanced Water Treatment Systems for Pure Quality & Reliable Performance
At Newpeak, we design and manufacture high-efficiency water treatment systems that meet stringent international standards.
Our customized solutions are engineered for various industrial and drinking water applications, ensuring optimal purity, system longevity, and full compliance with GMP and ISPE requirements.
Multi-Stage Water Treatment Process
We integrate advanced pretreatment and purification technologies to deliver clean, safe, and consistent water quality. Our systems are capable of producing purified water, mineral water, and ultra-pure water for a wide range of uses.

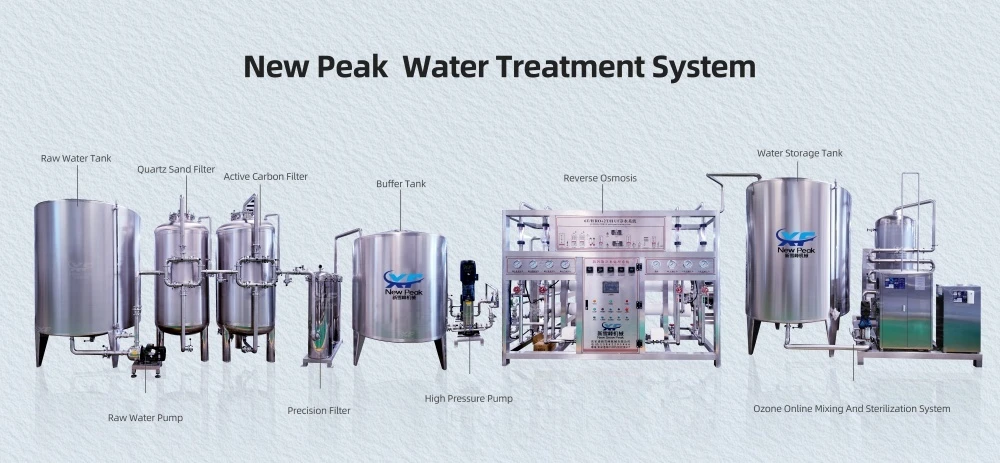

Typical System Workflow Includes:
Raw Water Tank → Water Pump → Quartz Sand Filter
Active Carbon Filter → Sodium Ion Exchanger
Precision Filter → Reverse Osmosis (RO) Unit
RO Buffer Tank → UV Sterilizer → Ozone Generator → Ozone Mixing Tower → Finished Water Tank
Key Components & Their Functions
| Component | Function |
|---|---|
| Water Pump | Transfers raw water efficiently into the treatment system. |

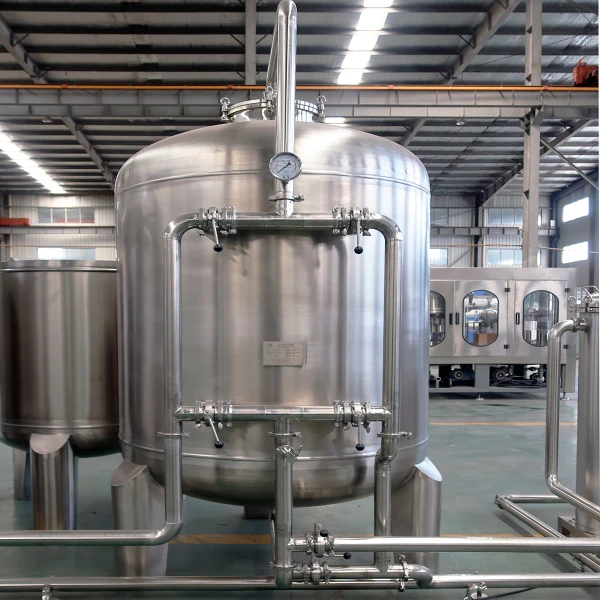

| Quartz Sand Filter | Removes suspended solids, rust, colloids, and reduces turbidity. Effluent turbidity ≤0.5 NTU. |
| Active Carbon Filter | Adsorbs odors, colors, organic matter, chlorine, and improves taste. |
| Sodium Ion Exchanger | Softens water by removing calcium and magnesium ions to prevent scaling. |
| Precision Filter | Ensures particles >0.1 µm are removed before RO protection. |
| Reverse Osmosis | Removes up to 99.9% of dissolved salts, bacteria, organics, and heavy metals. |
| RO Buffer Tank | Stores purified RO water for consistent supply to subsequent stages. |
| UV Sterilizer | Eliminates microorganisms that bypass earlier stages using ultraviolet light. |
| Ozone Generator & Ozone Mixing Tower | Provides final disinfection, ensuring sterile and safe output water. |
| Water Tank (Raw & Finished) | Provides storage for untreated and treated water, ensuring continuous operation. |
System Highlights & Technology
Customized Process Design: Tailored to specific water quality needs and output capacity (0.5–50 tons/hour).
Dual RO & EDI Options: Classical double-pass RO or advanced RO+EDI configurations for superior purity.
Full Membrane Technology Suite: Options include ultrafiltration, RO, and EDI for highest-grade water.
GMP & ISPE Compliance: All systems designed according to latest international standards.
Durable Materials: Constructed with SUS304/SUS316 stainless steel for corrosion resistance and long service life.
Premium RO Membranes: Featuring high-rejection rate imported membranes (e.g., Hydranautics) with >99.9% desalination efficiency.
How It Works: Falling Film Pure Steam Generation
For applications requiring pure steam, our T-type pure steam generators utilize falling film evaporation principles:
Preheated feed water enters a buffer tank and is circulated into an evaporator.
Impurities are continuously separated and discharged.
Output pure steam meets HTM2010/EN285 standards with non-condensable gases <3.5%, saturation >90%, and superheat <25°C.
Suitable for sterilization use within 2–5 barg, with rapid response (<30 seconds).
Why Choose Our Water Treatment Systems?
Custom Capacity Planning: Systems are built to match your production demand.
Energy & Water Efficient: Low operational consumption with high raw water utilization.
Automated & User-Friendly: PLC-controlled systems with real-time monitoring and minimal manual intervention.
Comprehensive Support: From design and installation to training and maintenance.
Applications
Ideal for:Pharmaceutical and cosmetic industries/Beverage and drinking water production/Hospitals and laboratories/Food and beverage processing/Industrial pure water applications
